Sale!

£2,849

Gates Carbon Drive, Fully folding Bosch eBike, Folded: 90cm x 60cm x 75cm, Bosch Performance 65Nm motor, Shimano Nexus 5-speed hub, 500Wh

Colour

Clear

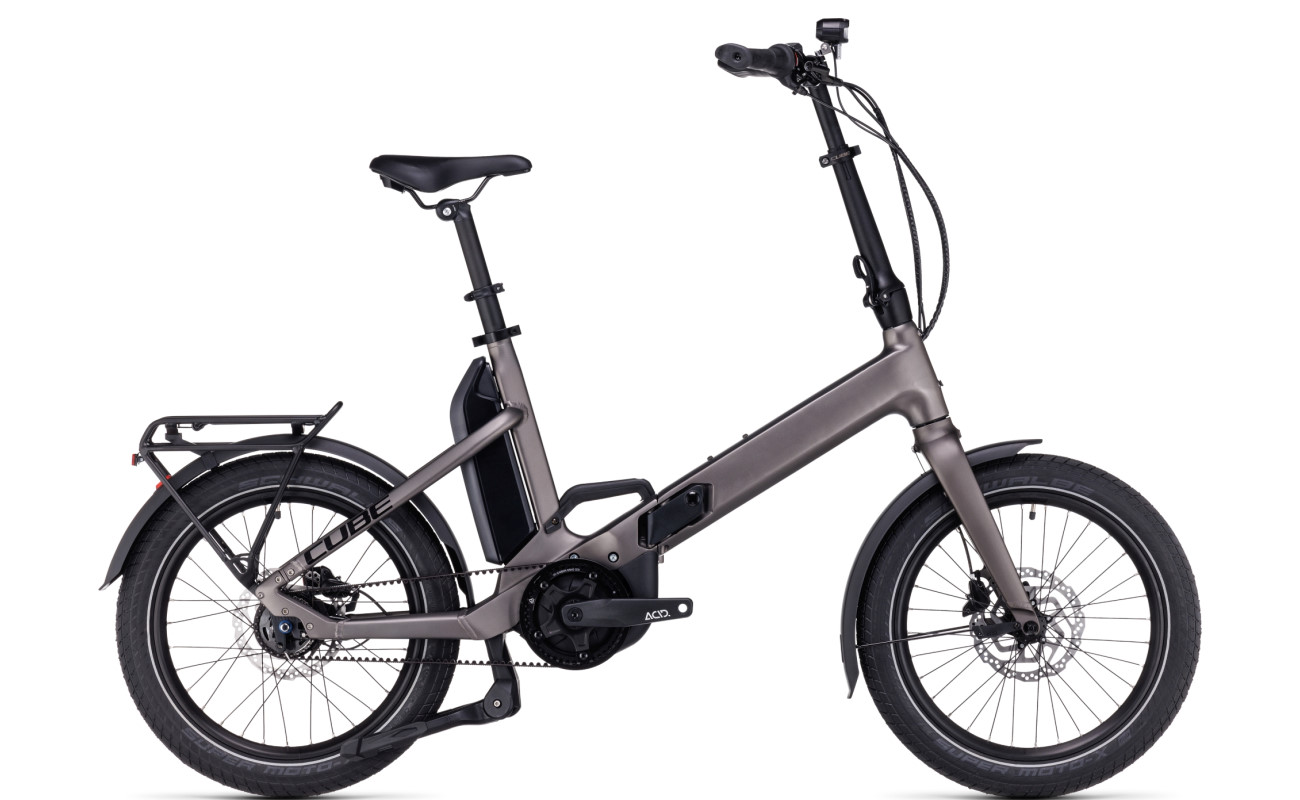

Cube Fold Hybrid 500

The Fold Hybrid 500 from Cube is a 20″ wheel fully folding ebike with 90º twist and fold handlebars. It’s design is perfect for flexible urban mobility and for travel by car, on the boat, caravan or motorhome. The folding mechanism is pure simplicity and only takes seconds.

This ‘non-sport’ version of Cube’s fabulous and highly desirable small folding ebike features a Nexus-5 hub gear for those preferring absolute simplicity.

A hop on and hop off treat for all, this little gem is highly maneuverable. The Fold Hybrid 500 from Cube marks a landmark in development for them too. It has an easy-to-adjust saddle and handlebar height, so the bike adapts quickly to rider size and preference. As a result, the Fold is ideal for a wide range of statures, and for both men and women alike. In addition, the extremely clever Speedlifter Twist handlebar stem mechanism allows a 90º turn of the bars in seconds for those very tight spaces.

Bosch Performance (Gen3) 65Nm Motor & 500Wh PowerPack

Both powerful and agile, the Fold Hybrid is a joy to ride. Thanks to Bosch’s Performance (Gen3) 65Nm motor, pulling power is superb, peaking at 65Nm. The large 500Wh battery means almost endless fun before the sun sets! Its position is thoughtfully behind the seat tube and allows an easy step through for all. That’s not all. This beauty comes with a Gates Carbon Drive for noise free and low maintenance cycling. No chain to oil! Also, this urban genius is a great hill-climber as well as being able to dance around town. In addition, it’s perfect for motorhome owners who park up and want freedom to explore without having to worry about relocating.

The Shimano Nexus 5-speed hub gears with Revoshift enable the bike to perform well on all elevations, and are a dream to use. Stopping power is via a set of Shimano hydraulic disc brakes that effortlessly bring the bike under control. Bosch’s Purion display provides all the necessary rider information.

Fully equipped, the Fold has mudguards as well as front and rear lights. Its ‘ACID’ semi-integrated rear carrier means the Cube range of luggage can easily be attached using their innovative ‘click’ system. Further highlights include a convenient carry handle located on the frame above the motor. This makes it easy to lift and carry the bike, and perfect for taking it on public transport, carrying it up a flight of stairs or into the office.

The Fold Hybrid 500 is the perfect solution for many with a multitude of uses, due to its portable nature and ease of ride.

See our full range of Cube ebikes HERE.

Motor	Bosch Drive Unit Performance Generation 3 (65Nm) Cruise (250Watt)
Battery	500Wh
Gears	Shimano Nexus SG-C7000-5D, 5-Speed
Forks	Aluminium
Brakes	Shimano BR-MT200, Hydr. Disc Brake (180/180)
Wheel Size	20"
Tyres	Schwalbe Super Moto-X, Double Defense, 62-406
Colour	Darkblue/Black, Teak/Black
Frame Size	ONE SIZE

All sizing information is a guide only. If you have any questions about bike sizing, our expert team is here to help. Call us on 01905 611774.

How do I measure my height?

With your shoes off, stand upright against a wall, with your shoulders back and legs together. Use a pencil to make a small mark on the wall above your head (make sure you hold the pencil parallel to the floor). Then measure from the floor to your mark, in centimetres or feet and inches.

How do I measure my inside leg length?

With your shoes off, stand upright with your back against a wall. Place a book/ruler between your legs, level with your crotch. Then measure from the floor to the top of the book/ruler, in centimetres or feet and inches (it’s easier if a friend helps).

Q & A

Do all brands of ebike use the same unit of measurement?

No. Most brands show sizing in centimetres, however some use a S/M/L system, and others use inches. The table above includes all of these variations to help you find the right size.

Which size should I go for if I'm in between those listed?

If your measurements suggest that you have a choice of two different sizes, then in the end it’s a personal choice. Here are some rules of thumb to consider: Touring/Trekking ebikes - choose the smaller size. It is possible to make a smaller frame bigger (for example, by raising the saddle or fitting a longer the stem), whereas if the frame itself is too big for you, it’s likely to be less comfortable and won't feel right. eMTBs - choose the larger size. You’ll find an eMTB with a slightly larger frame easier to handle than one that feels cramped. You can always fit a shorter stem if necessary to reduce the reach to the handlebars.

How are ebike frame sizes measured?

An electric bike’s frame size is calculated by measuring the distance from the top of the seat tube (where the seat post inserts), to the centre of the front chainring. Sizing Guide
